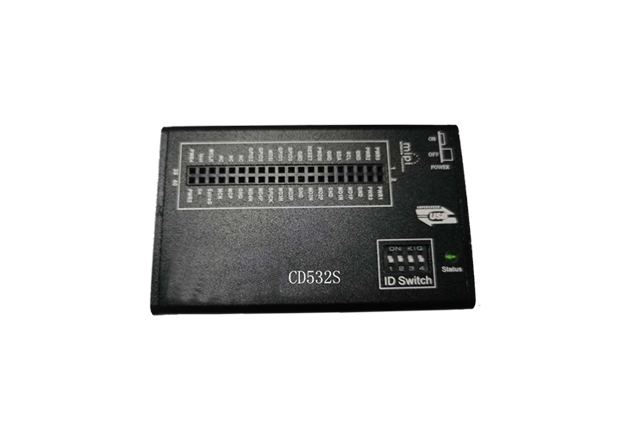

Image test capture card
Please contact to purchase this product：Anki +86-13425093913
Data Input port: MIPI D-PHY 124 Lane (C-PHY sensor port check 23 Trio compatible);
MIPI D-PHY: Max data rate 1.6Gbps/Lane
System Interface: USB3.0①.
Acquisition Image Size: Infinite pixels.
Support Dual camera Multi camera and Array camera.
Video input Format: 8 bit RAW DATA②/ 10 bit RAW DATA/ 12 bit RAW DATA/ 14 bit RAW DATA/ YUV422/ JPEG
Video output Format: RAW DATA/ YUV422/ JPEG
6 Channels POWER SUPPLY: 5 Channels Programmable Power Source; 1 Channel 5V fixed PMOS switch. Optional additional 3~5V to 5~12V adjustable DC-DC BOOST BOARD.
Current Measure: PWR0- PWR4 Power Channels have 3 ranges for current measure
An extra Current sense channel have 3 ranges for current measure
Built In Configurable MCLK: 1.5MHz~80MHz (0.25MHz/STEP, ±0.0001 MHz)
I2C Interface: Programmable I2C (3.4Mbps/ 1Mbps/ 400kbps/ 200kbps/ 100kbps/ 25kbps, I2C level is the same as sensor IO level).
Configurable Sensor I/O voltage: 1.0V~3.3V
4-CH External Programmable GPIO Ports: supports output/ input/ trigger/ hardware trigger grab/ hardware synchronization grab ( I/O Level:3.3V)
Special tool for users to configure sensor setting files online for image acquisition.
Highly integrated SOC technology which can achieve higher speed and Zero hardware delay（less than 4 lines delay by hardware）.
High speed embedded d-ram data buffer for data receive and transfer.
MIPI CRC & ECC check, USB3.0 SIE buffer check to ensure data correctness and integrity.
Button: System power Button.
Buzzer: sound alarm when I2C NAK or system failure.
LED Indicator: System status LED Indicator.
Power Consumption (5V): Standby <0.1W； Dynamic <0.4W
